Adobe Premiere Pro Sequence Presets & Editing Mode

Morgan M-JPEG codec Premiere Pro Presets

If you want to edit and preview sequences with Morgan M-JPEG codec in Adobe Premiere Pro, you can download and install Sequence Presets available here.

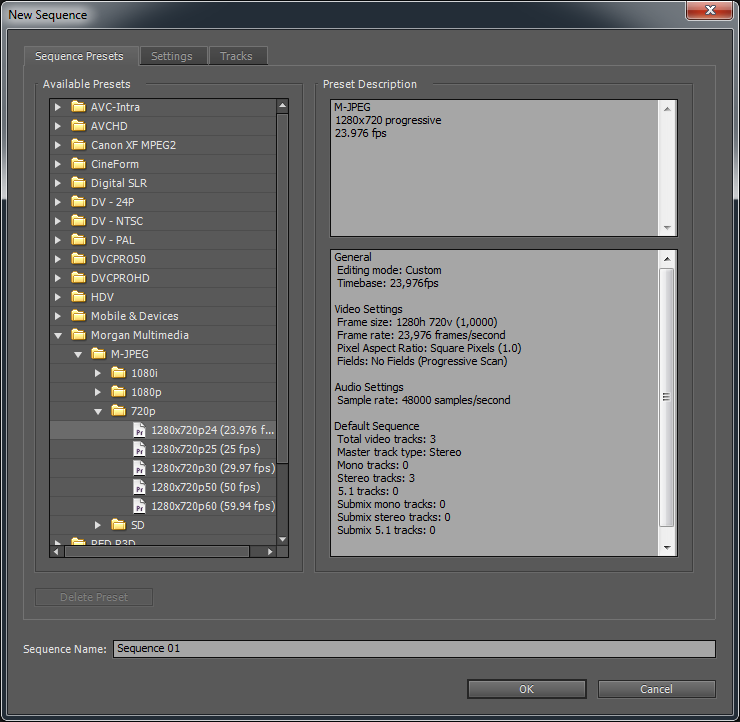

Sequence Presets

Newly installed M-JPEG HD and SD Sequence Presets are available in the "Morgan Multimedia" folder.


Premiere Pro Sequence Presets

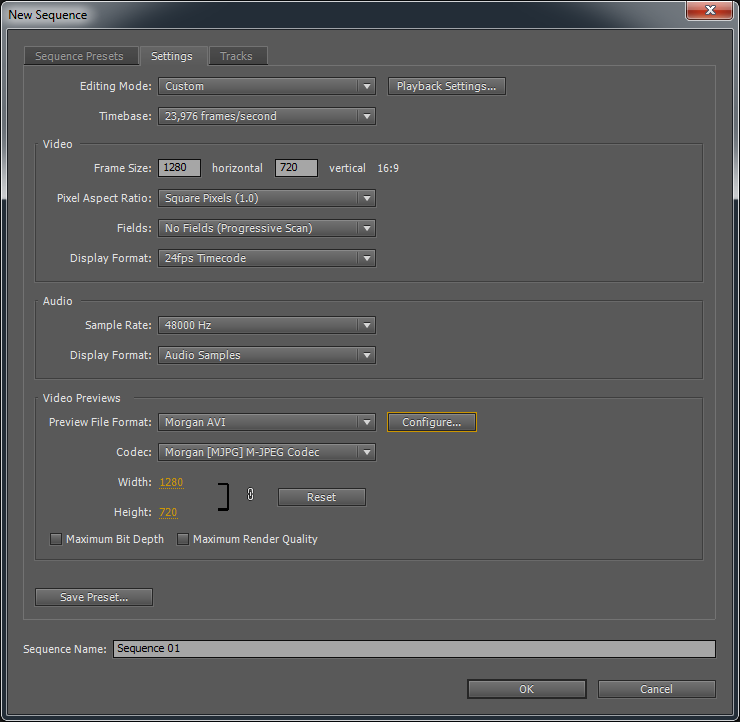

Editing Mode and Video Preview

Editing mode is set to "Custom" and a new Preview File Format called "Morgan AVI" is installed. The Codec is set to "Morgan [MJPG] M-JPEG codec".


Premiere Pro Editing Mode and Video Preview


Morgan M-JPEG codec Configure

Because Premiere Pro doesn't set and get compression settings with buil-in AVI exporter, these compression settings can't be attached to a Sequence Preset. So be sure the codec is properly configured before editing  or exporting a sequence in M-JPEG.


See below correct settings for Progressive Scan ("JPEG" selected).


Morgan M-JPEG codec Configure


If you want to use Interlaced Scan (1080i Sequence Presets) select "M-JPEG".


What is JPEG2000 ?

JPEG2000 is the new international standard for image compression method and file format. This is the successor of the well-known traditional JPEG written by the ISO group Joint Photographic Experts Group.

Contrary to the technology JPEG which used DCT functions, JPEG2000 technology is based on an mathematical algorithm called wavelets to compress image that provides high compression with image quality superior to all existing standard encoding techniques even at low bit rates.

That’s the reason why JPEG2000 has a number of advantages over the JPEG Format.

JPEG2000 Advantages vs. JPEG ?

JPEG2000 Application domains ?

JPEG2000 is the new image encoding standard that provides essential features to many emerging imaging applications. Its features make JPEG2000 an excellent solution for :
